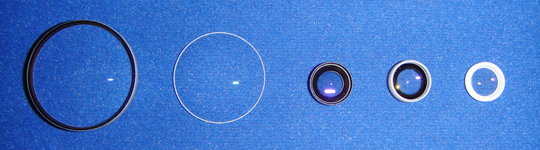

HOYA has vast polishing capacity for the spherical glass lens refer to digital camera, video camera and interchangeable lens.
Our strong point
HOYA has established one stop lens fabrication facility(from the pressed lens blanks fabrication to the finished spherical lens) in the Kingdom of Thailand with attractive lead-time, mass production capacity and cost effective pricing.Prototype production request and quick delivery to the mass production starting stage are also available.
1) Optical glass material
Pressed lens blanks are supplied from reheat-press factory next to the lens polishing factory.
2) Lens shape
Biconvex, biconcave, Meniscus etc.
3) Centering
In-house centering process are ready.
4) Coating and other special request
We can apply to the specific multi coating request up to the customer request, please feel free contact us. Also we have in-house production capacity for the special lens cutting such as D-cut or I-cut. Lens painting or cementing(aspherical/spherical) request are also acceceptable.
5) Tolerance of lens specification
Please consult us about the concrete tolerance of each lens drawing, if any.
List of Glass Types(Glass Polished Lenses)
Recommended glass type
| Glass Type | Code | Glass Type | Code | Glass Type | Code | |||
|---|---|---|---|---|---|---|---|---|
| ◎ | FCD1 | 497-816 | ◎ | E-FD15L | 699-301 | ◎ | NBFD27 | 901-271 |
| ◎ | FCD10A | 459-902 | ◎ | E-FD80 | 690-311 | ◎ | NBFD29 | 770-297 |
| ◎ | FCD100 | 437-951 | ◎ | FD60-W | 805-255 | ◎ | NBFD30 | 859-300 |
| ◎ | FCD500 | 554-718 | ◎ | FD225 | 808-228 | ◎ | NBFD32 | 730-322 |
| ◎ | FCD515 | 593-686 | ◎ | FD270 | 684-268 | ◎ | NBFD38 | 653-395 |
| ◎ | FCD600 | 594-605 | ◎ | E-FDS1-W | 923-209 | ◎ | TAF1 | 773-496 |
| ◎ | FCD615 | 571-716 | ◎ | E-FDS2 | 003-193 | ◎ | TAF3D | 804-465 |
| ◎ | FCD705 | 550-755 | ◎ | E-FDS3-W | 104-170 | ◎ | TAFD5G | 835-427 |
| ◎ | FCD915 | 481-853 | ◎ | FDS16-W | 986-165 | ◎ | TAFD25 | 904-313 |
| ◎ | PCD4 | 618-634 | ◎ | FDS18-W | 946-180 | ◎ | TAFD30 | 883-408 |
| ◎ | PCD40 | 620-639 | ◎ | FDS20-W | 870-200 | ◎ | TAFD32 | 871-407 |
| ◎ | PCD51 | 593-670 | ◎ | FDS24-W | 921-240 | ◎ | TAFD33 | 881-401 |
| ◎ | LAC8 | 713-539 | ◎ | FDS90-SGP | 847-238 | ◎ | TAFD34 | 850-427 |
| ◎ | LAC14 | 697-555 | ◎ | FDS90-SG | 847-238 | ◎ | TAFD35L | 911-353 |
| ◎ | TAC6 | 755-523 | ◎ | FF8 | 752-251 | ◎ | TAFD37A | 900-374 |
| ◎ | TAC8P | 729-545 | ◎ | LAF45 | 614-443 | ◎ | TAFD40-W | 001-255 |
| ◎ | TAC8 | 729-547 | ◎ | NBFD10 | 834-373 | ◎ | TAFD45 | 954-323 |
| ◎ | E-FD1L | 717-295 | ◎ | NBFD13 | 806-407 | ◎ | TAFD55-W | 001-291 |
| ◎ | E-FD4L | 755-275 | ◎ | NBFD15-W | 806-333 | ◎ | TAFD65 | 051-269 |
| ◎ | E-FD10L | 728-283 | ◎ | NBFD25 | 855-252 |
Common glass type
| Glass Type | Code | Glass Type | Code | Glass Type | Code | |||
|---|---|---|---|---|---|---|---|---|
| FC5 | 487-704 | E-FL6 | 567-428 | FF5 | 593-354 | |||
| FCD1B | 497-816 | E-F2 | 620-363 | BAFD7 | 702-412 | |||
| BSC7 | 517-642 | E-F5 | 603-380 | BAFD8 | 723-380 | |||
| E-C3 | 518-590 | E-FD2 | 648-338 | LAF2 | 744-449 | |||
| BAC4 | 569-560 | E-FD5 | 673-322 | LAF3 | 717-480 | |||
| BACD5 | 589-613 | E-FD8 | 689-312 | NBF1 | 743-492 | |||
| BACD16 | 620-603 | E-FD13 | 741-278 | NBFD11 | 786-439 | |||
| BACED5 | 658-509 | FD60 | 805-255 | NBFD15 | 806-333 | |||
| E-CF6 | 517-522 | FD110 | 785-257 | TAFD40 | 001-255 | |||
| E-FEL1 | 548-458 | FD140 | 762-266 | TAFD55 | 001-291 | |||
| E-FEL2 | 541-472 | E-FDS1 | 923-209 | |||||
| E-FL5 | 581-409 | FDS18 | 946-180 |
Ref / Ref glass type will be dropped in production.Please contact for any inquiry.
| Glass Type | Code | Glass Type | Code | Glass Type | Code | |||
|---|---|---|---|---|---|---|---|---|
| Ref. | FCD10 | 457-903 | Ref. | E-F1 | 626-357 | Ref. | E-BACD10 | 623-569 |
| Ref. | FCD505 | 593-686 | Ref. | E-F3 | 613-370 | Ref. | E-BACED20 | 649-530 |
| Ref. | LBC3N | 606-637 | Ref. | E-F8 | 596-392 | Ref. | E-BAF8 | 624-471 |
| Ref. | BACD2 | 607-567 | Ref. | E-FD1 | 717-295 | Ref. | E-LAF7 | 750-350 |
| Ref. | BACD4 | 613-586 | Ref. | E-FD4 | 755-275 | Ref. | NBFD3 | 805-396 |
| Ref. | BACD11 | 564-608 | Ref. | E-FD7 | 640-346 | Ref. | NBFD12 | 800-423 |
| Ref. | BACD14 | 603-607 | Ref. | E-FD10 | 728-283 | Ref. | TAF2 | 795-454 |
| Ref. | BACD15 | 623-581 | Ref. | E-FD15 | 699-301 | Ref. | TAF3 | 804-465 |
| Ref. | BACD18 | 639-555 | Ref. | E-FDS3 | 104-170 | Ref. | TAF4 | 788-475 |
| Ref. | LAC7 | 652-584 | Ref. | FDS24 | 921-240 | Ref. | TAF5 | 816-466 |
| Ref. | LAC9 | 691-547 | Ref. | FDS90 | 847-238 | Ref. | TAFD5F | 835-427 |
| Ref. | LAC10 | 720-503 | Ref. | TAC2 | 741-526 | Ref. | TAFD35 | 911-353 |
| Ref. | LAC12 | 678-555 | Ref. | TAC4 | 734-511 | Ref. | TAFD37 | 900-374 |
| Ref. | LAC13 | 694-533 | Ref. | BAF10 | 670-472 | Ref. | BAF11 | 667-483 |
| Ref. | LACL60 | 640-602 | Ref. | E-ADF10 | 613-444 | |||
| Ref. | E-FEL6 | 532-488 | Ref. | E-ADF50 | 654-396 |
